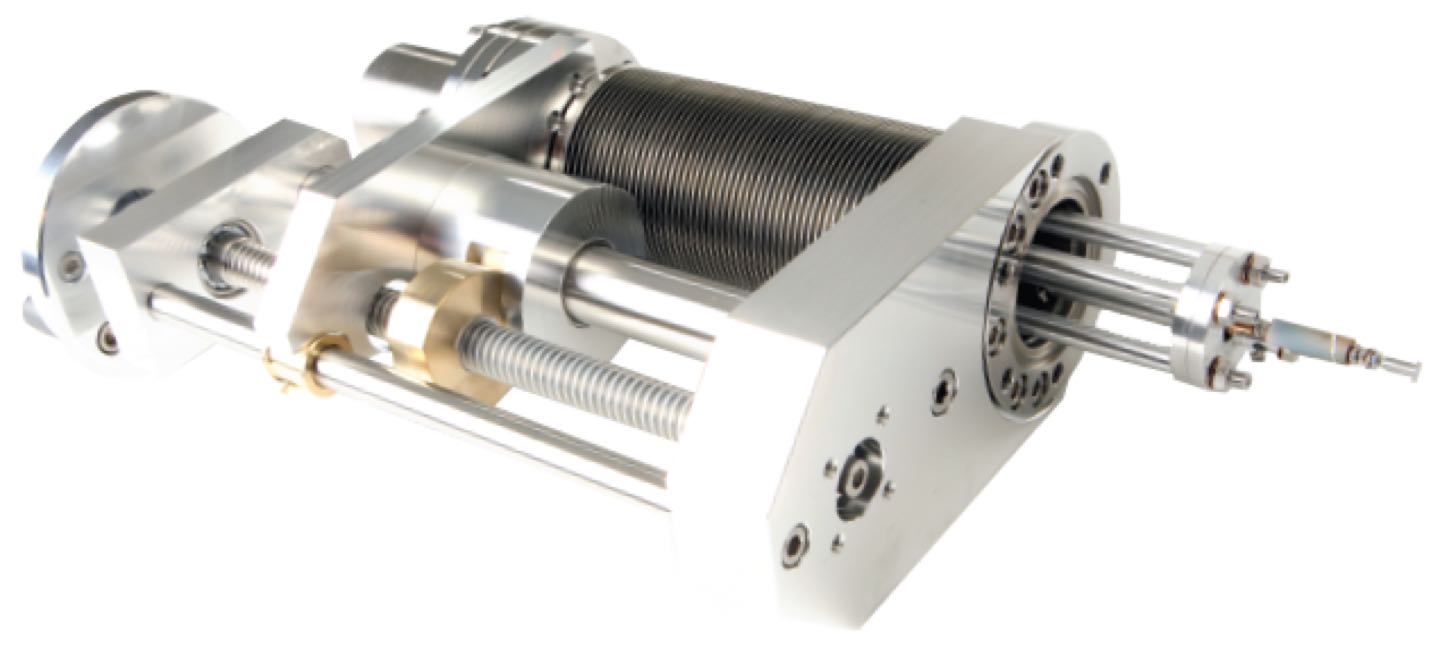

UHVKP020-Manual

UHVKP020-Manual

Specification

Download PDF   Get Quote

Tip material / diameter4 mm - 10 mm stainless steel tip (other diameters available)
Work function resolution1 - 3 meV
Standard translator50 mm manual translator
Motorised translator sizes50 mm or 100 mm manual translators
Height control (auto)Approximately 1 - 5 mm by DC offset (unless motorized)
VisualisationSingle-point work function/contact potential difference scans
OscilloscopeDigital TFT oscilloscope for real time signal
OptionsSPS/SPV/APS capabilities
Test sampleAvailable on request
Control suppliedUSB control with dedicated software
Detection systemOff-null with parasitic capacity rejection
Mounting geometryNormal to sample surface
Mounting portDN40/CF70 (2.75 inch) OD
Vacuum compatibility2 x 10-11 mBar
Flange to sample distanceUser defined
UHV cellNot included
Warranty12 Months
